steel structure

COMMERCIAL

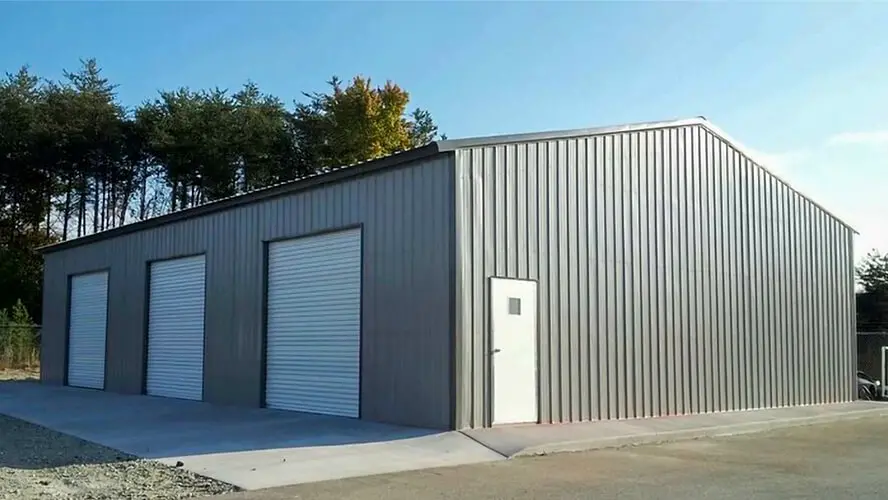

In commercial settings, steel structures are commonly used for constructing office buildings, retail spaces, shopping malls, and parking structures due to their versatility, cost-effectiveness, and ability to create large, open interior spaces, facilitating efficient business operations and maximizing usable floor area.

INQUIRE NOW
PRODUCT INFORMATION

High-Rise Frame Structure

OverviewWZH frame structure system consists of steel columns, steel beams, joint

Multi-Story Frame Structure System

Multi-Story Frame Structure SystemOverviewMulti-story frame structure is a new t

  • H sections
  • Roof sheet and
    ridge
  • Sandwich panel/
    clad
  • C/Z
    purlins
  • Bolts
  • Ventilation
    componen
  • Doors/ Windows
  • H sections
    Material:Q235/Q345
    Surface:Galvanized zinc coat or two-layer of rich-zinc expoy paint
    Usage:Make up the main steel structure frame
    H sections
    Roof sheet and
    ridge
    Color:Ral colors,optional
    Thickness:0.2-0.8mm
    Usage:Roof or wall panels for steel structure buildings panels
    We have several lines of press.can produce many types of corrugated sheets
    Roof sheet and<br> ridge
    Sandwich panel/
    clad
    Made up by two PPGI surface sheets and core material
    Classification as shapes:
    Wall panel and roof panel
    a. Wall panel:one side is PPGI corrugated sheet,another side is plain PPGI sheet or both sides are small wave sheets
    b. Roof panel:Rtop side are PPGI corrugated sheets,anotheside is plain or small wave sheets
    Classification as core materials:EPS sandwich panel,Rockvool sandwich panel,PU/PIR sandwich panel,etc
    Applications:Fire protection and warm insulation
    Advantage:Removable, light weight and easy to installed
    Sandwich panel/ <br>clad
    C/Z
    purlins
    Material:Q235 or Q345
    Surface:Galvanized zinc coat
    Classification:Z purlin and C purlin
    Applications:For supporting protection structure,panels
    C/Z <br>purlins
    Bolts
    As the structure main connection component.they can be classified as positions on the structure
    Foundation bolts:
    For connecting basement and main structure part.
    Grade:M24
    High strength bolts:For connecting main structure part,such as pillars,beams.
    Grade:M20
    Common bolts:For connecting second part structure Grade:M12
    Bolts
    Ventilation
    componen
    Classification:No power fans,electrical fans
    No power fans are normally used on roof,it is widely used in recent years
    Electrical fans:normally installed on walls.can dedust,ventilation
    Ventilation<br> componen
    Doors/ Windows
    Material:Plastic steel or alloy aluminum
    Usage:Ventilation ,for people,trucks in and out
    Position:On the wall or on the roof
    Doors/ Windows
