The price of building a steel structure cattle shed typically ranges from¥300 to¥1,500 per square meter.The final cost depends on the size,structural type,material grade,insulation and ventilation system,and internal livestock equipment.

Approximate budgets for common sizes are:

Small 200㎡cattle shed:Approximately¥60,000–¥200,000

Medium 500㎡cattle shed:Approximately¥150,000–¥600,000

Large 1,000㎡cattle shed:Approximately¥300,000–¥1,200,000 and above

Main costs include steel usage,foundation construction,wall and roof materials,cattle pen system,ventilation equipment,and labor costs.

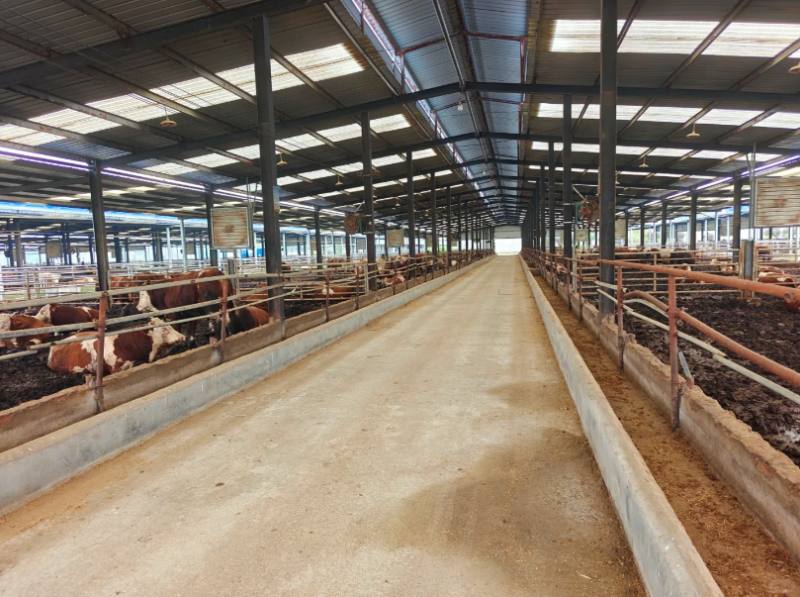

What is a steel structure cattle shed?Why do farmers prefer this structure?

The core of a steel structure cattle shed is structural components such as H-beams,C/Z-beams,and galvanized parts.These materials offer advantages such as high strength,corrosion resistance,and an ultra-long lifespan.The roofs are mostly made of color steel plates or sandwich panels,which facilitates heat dissipation and provides good rain protection.

More importantly,its design allows for large spans and open spaces without internal columns,making cattle movement more comfortable and improving the efficiency of management and mechanized feeding.

The main reasons farmers choose steel-structured cattle sheds are:

*Fast construction speed,usually completed in a few days to a few weeks;

*Long lifespan,usable for 30–50 years;

*Far better ventilation and lighting than traditional brick-and-mortar cattle sheds;

*Highly flexible,expandable,remodelable,and movable;

*Easy to install automated equipment,suitable for large-scale farming.

Steel-structured cattle sheds are not only an upgrade to the building itself but also an important component of modern farming methods.

What factors determine the cost of building a steel-structured cattle shed?

The cost of a steel-structured cattle shed may seem complex,but by breaking it down according to the influence and proportion of each factor,the budget composition becomes very clear.Below are seven key factors that determine the price,along with reference valuesfor the cost percentage in common farm projects.

1.Building Area Size(35%–50%of Total Cost)

Area is always the most decisive factor.

Whether you're building a 200㎡family-style cattle shed or a 1,000㎡large-scale cattle shed,the larger the area,the higher the total cost,but the cost per unit area will decrease.For example,a 200㎡cattle shed typically costs around¥1,000/㎡,while a 1,000㎡cattle shed might only cost¥450–¥750/㎡.

Area affects the amount of steel used in the structure,the amount of roofing materials,labor input,and equipment requirements,making it the core of the entire cost system.

2.Steel Usage and Structural Form(20%–35%of Total Cost)

The most expensive part of a cattle shed structure is steel.

Different steel structure types are required depending on the specific needs:

***Light steel structure(lower cost):**Suitable for small cattle sheds,more affordable.

***H-beam steel structure(more stable):**Suitable for large-span cattle sheds,capable of withstanding wind,snow,and equipment weight.

***Galvanized steel structure(corrosion resistant):**Suitable for humid or corrosive environments,such as hot and humid regions or large farms.

The type of steel structure,wall thickness,and surface treatment significantly impact the budget.For example:

*H-beam steel is 15–30%more expensive per ton than light steel.

*Hot-dip galvanizing costs 20–40%more than painting.

This is often one of the key factors determining whether a cattle shed is"expensive"or"cheap."

3.Roofing and Wall Materials(10%–20%of total cost)

Upon entering a cattle shed,the roof and walls are the first things you see.They not only affect the appearance but also directly determine the internal temperature,humidity,and comfort level.

In southern or warmer regions,single-layer corrugated steel roofing is commonly used.It's lightweight,quick to install,and inexpensive,costing approximately$5–$10/㎡,making it suitable for cattle sheds that don't require strict insulation.Sunlight shining on the roofing makes the shed bright and clean.

In colder or temperate regions,rock wool sandwich panels are often chosen.They offer strong fire resistance and insulation,costing approximately$12–$20/㎡,and can maintain a stable indoor temperature in winter.High-end farms use PU sandwich panels,which offer the best insulation and cost$18–$30/㎡,significantly reducing energy consumption and protecting the health of the cattle.

The choice of roofing material directly affects the farming environment and milk production efficiency.Higher quality materials generally mean a more stable internal temperature in the cattle shed,resulting in more stable growth for the cattle.

4.Foundation Construction and Flooring(10%–20%of total cost)

Even the most stable cattle shed needs a solid foundation.The foundation includes strip or independent footings,and the flooring is typically 8–12 cm thick concrete.

Standard C20 concrete costs approximately$15–$25 per square meter,suitable for small cattle sheds.Larger sheds or areas requiring mechanical access utilize high-strength concrete with anti-slip brushing,costing$25–$40 per square meter.

A smooth,sturdy,and well-drained floor not only reduces the risk of hoof diseases and slips but also makes daily cleaning more time-and labor-saving.

5.Internal Equipment and Systems of the Cattle Shed(20%–35%of Total Cost)

The interior of a cattle shed is a"mini-factory,"including pens,bedding,feeding systems,automatic watering systems,ventilation,and manure disposal systems.

Automatic Watering System:Cattle can drink with a simple push,improving efficiency.

Ventilation System:Fans+evaporative cooling pads or skylights maintain a suitable temperature.

Manure Disposal System:Ditches,grates,or direct discharge simplify the cleaning process.

Costs vary greatly per square meter depending on automation and scale,approximately$20–$80 per square meter.Appropriate equipment configuration can significantly improve breeding efficiency and herd health.

6.Insulation and Ventilation Design(5%–12%of total cost)

Cattle are very sensitive to temperature,prone to heat stress in summer and increasing energy consumption in winter.

Northern or cold regions:Blanket-style insulation layer,roof skylights

High-temperature areas in summer:Large axial flow fans+evaporative cooling pads

Investment varies depending on climate,approximately$5–$15/㎡.Good insulation and ventilation design ensures a comfortable temperature in the cattle shed year-round,leading to healthier cattle and more stable yields.

7.Regional Labor and Transportation Costs(5%–15%of total cost)
Construction location and transportation distance directly affect the total cost.

High labor costs and construction difficulties in remote areas

Increased costs for long-distance transportation of steel and sandwich panels

Inconvenient roads may require partial transportation

This cost typically accounts for$5–$15/㎡of the total cost;cattle sheds of the same size may have price differences of 10%–20%in different regions.

Actual Cost Reference for Cattle Sheds of Different Sizes

Regarding cattle shed costs,international market figures often differ significantly from domestic figures.Below,we'll estimate the cost of three typical steel-framed cattle sheds in US dollars,describing the investment and functionality behind each type's cost in the context of real-world large-scale farming.

1.Small Cattle Shed(Approx.200㎡):For Small-Scale Families or Farms

Imagine building a steel-framed cattle shed next to a field to house only a dozen or so cattle—that's a small cattle shed.The structure is typically clean and simple:you might choose a basic steel beam,a basic concrete floor,and then cover it with basic wall and roof materials.Ventilation relies heavily on natural wind,with windows or ventilation openings being moderate and simple.Equipment consists of basic cattle beds and pens.

In the international(US)market,the construction cost of this type of metal cattle shed(basic model)is approximately$10 to$25 per square foot.

Therefore,a small cattle shed of approximately 2,150 square feet(approx.200㎡)would likely cost between$21,500 and$53,750.

This price range already includes the metal structure and foundation construction,but if you choose higher-grade wall or insulation materials,the price will be higher.If you're only using it for basic livestock farming with natural ventilation,this size is very practical for a family farm,and the expenses are relatively moderate.

2.Medium-sized cattle barn(approximately 500㎡):More comprehensive functions,suitable for growing farms

Moving up a bit:A medium-sized cattle barn is approximately 5,400 square feet(about 500㎡),which is no longer a very small structure.You would consider a more stable steel frame,a larger span design,and some insulated wall panels or roofing.Ventilation might use a combination of fans and skylights,and the cattle troughs,feeding passages,and cattle beds would be more systematic.

Assuming a unit cost per square foot for a medium-complexity metal farmhouse on the market,it would be roughly$15 to$28 per square foot(this range includes materials+foundation+installation,etc.).

The total cost of a 5,400 square foot cattle shed would be approximately$81,000 to$151,200.

Within this budget,you can equip it with a relatively complete internal system,such as fan ventilation,evaporative cooling,basic barns,and watering facilities.This size of cattle shed is suitable for 30–60 cattle and provides very good management efficiency and environmental quality.

3.Large Cattle Sheds of Approximately 1,000㎡:A Typical Choice for Modern Large-Scale Farms

At a size of 10,800 square feet(approximately 1,000㎡),you are essentially building a truly large-scale livestock facility.These cattle sheds typically use high-strength steel structures(such as large-span H-beams),and the roof and walls may be made of sandwich panels(for better insulation).The internal equipment is very comprehensive:automatic watering,mechanical feeding channels,manure treatment systems,ventilation systems,etc.,are all included.

Based on common unit cost estimates for agricultural steel structure buildings(including structure,foundation,construction,and some equipment),the cost per square foot is likely to range from$15 to$35.This would bring the total cost to approximately$162,000 to over$378,000.

At this level,you can practically consider the barn a fully functional livestock production unit.Ventilation and insulation systems are reliable,cattle beds and feeding channels are meticulously designed,and manure management systems can be automated.For large ranches or dairy farms,while this investment is significant,it is well worth it in terms of long-term operational efficiency and cattle health.

Steel Structure Barns vs.Traditional Brick-and-Concrete Barns:Which is More Cost-Effective?

When it comes to barn construction,many farmers'first reaction is still brick-and-concrete structures—thick and sturdy.However,upon closer comparison,you'll find that steel structure barns actually have advantages in terms of cost and user experience.

First,let's look at the construction cost.Steel-structured cattle sheds are lightweight and quick to construct,typically saving 10%–30%in costs compared to traditional brick-and-mortar sheds.Brick-and-mortar sheds require extensive bricklaying and plastering,a complex process with a long construction period and high labor costs;in tight deadlines or on larger projects,costs can easily exceed budget.

Furthermore,lifespan.Modern steel-structured cattle sheds,if properly maintained,can last 30–50 years,performing relatively stably even in humid or temperature-sensitive areas.In contrast,brick-and-mortar sheds last approximately 20–40 years under similar conditions,and are more prone to wall cracking and water seepage,especially in humid regions.

Ventilation and lighting are crucial for cattle health.Steel-structured cattle sheds can easily incorporate skylights,side vents,and roller blinds,allowing for free air circulation and maintaining a dry and comfortable temperature inside.Achieving the same ventilation in brick-and-mortar sheds usually requires additional windows or fans,increasing costs and potentially damaging the overall structure.

Finally,there is flexibility in expansion and renovation.Steel-structured cattle sheds can be lengthened,widened,and even disassembled and relocated entirely,making them ideal for ranch expansion or temporary relocation.In contrast,brick-and-mortar cattle sheds offer almost no room for adjustment;once built,modifications are extremely difficult and costly.

Overall,steel-structured cattle sheds are not only more cost-effective and faster to construct,but also provide a better living environment for the cattle and offer greater flexibility for future expansion.For farmers seeking a balance between cost and efficiency,this is currently the wisest choice.

Conclusion

The cost of building a steel-structured cattle shed ranges from¥300 to¥1,500/㎡,ultimately depending on the structural type,materials,scale,and equipment configuration you choose.

A steel-structured cattle shed is a long-term investment that impacts not only farming performance but also herd health,labor efficiency,and the possibility of future expansion.Therefore,sound planning and professional implementation are crucial.

If you are planning your own cattle shed and would like a more accurate quote or design,please tell me your area,structural requirements,and location,and I can help you refine your budget.
